詳細情報 |
|||
| コネクタタイプ: | Deutsch J1939 HD-16-9-1939S-P080 HD-10-9-1939P-P080 | ピンカウント: | 2ピン |
|---|---|---|---|
| ワイヤタイプ: | UL 1007 18＃および16＃ | 連絡保持: | 20ポンド |
| 圧着引張: | > 20ポンド（18＃）、> 25ポンド（16＃） | 動作温度: | -40℃〜 +125℃ |
| 振動抵抗: | 10〜2000Hzで2時間2時間 | IP評価: | IP68 |
| 防水深さ: | 24時間1.2メートル | 端子タイプ: | 1060-16-0122 |
| 障害モデル: | ワイヤーダメージ、グロメットが壊れています | 材料: | シリコンラバーシール、熱可塑性 |
| コネクタシリーズ: | edg-hd | カラーオプション: | 、赤い、青い黒い、緑 |
| カスタム長: | はい | ||
| ハイライト: | 16pin OBDII Passthru Cable,IP68 Rating Automotive Wiring Harness,Power Break Out Diagnostic Connector Cable |
||
製品の説明

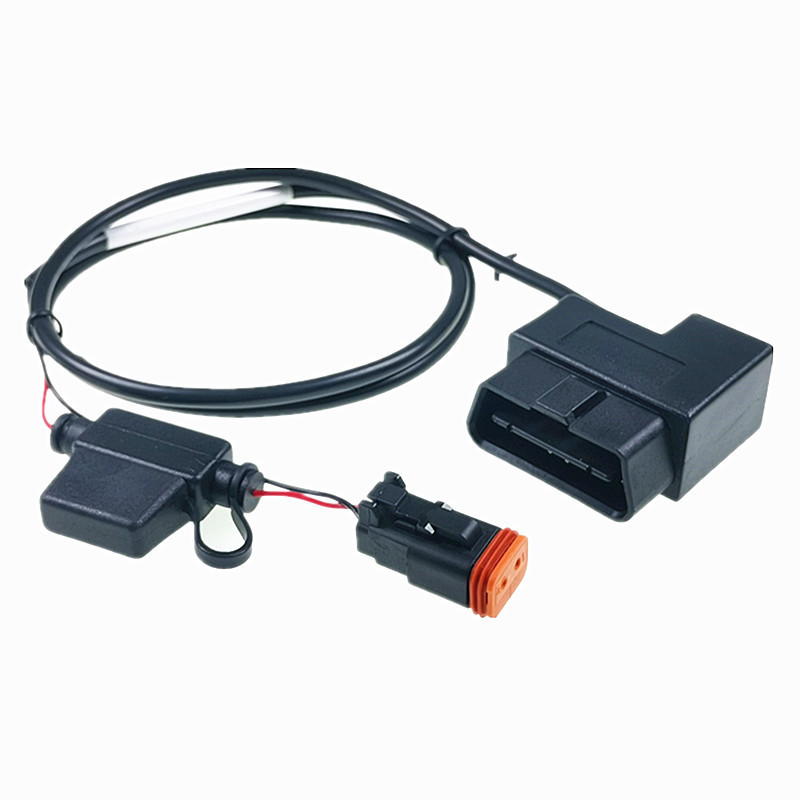

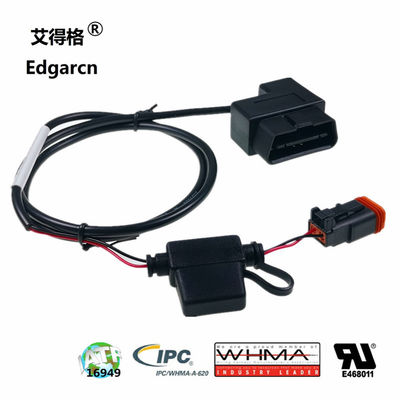

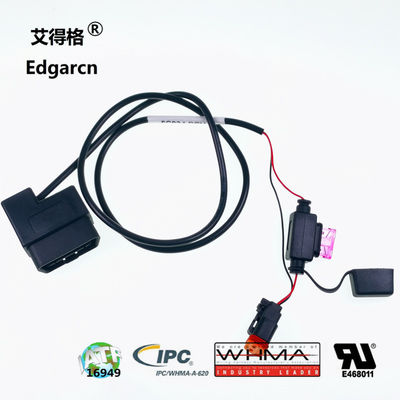

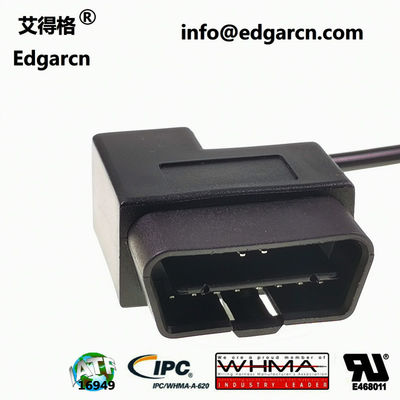

The EDG-HD series is an environmentally sealed silicone rubber thermoplastic cylindrical connector designed for fast, easy, trouble-free assembly in heavy-duty diagnostic applications including trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, oils, fuel, road salt, grease, mud, and other contaminants.
- Operating temperature range: -40℃ to +125℃ (no cracking, chipping, or leaking after 20 test cycles)
- Withstands 20 G's sinusoidal vibration at 10-2000Hz for 2 hours in three mutually perpendicular planes with no mechanical damage
- IP68 rated - waterproof with immersion under 1.2 meters of water for 24 hours
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging can be customized to client specifications. Standard lead times:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS. Options for air, sea, or other shipping methods.
