詳細情報 |
|||
| 型番: | 5C994M-2 | 動作電圧: | 12V / 24V DC |
|---|---|---|---|
| 動作温度: | -30°Cへの+85°C | 現在の評価: | 10Aまで |
| 長さ: | 顧客の要求に応じて | 輸送パッケージ: | カートン |
| コネクタタイプ: | PRS クリックイン | ワイヤーの互換性: | 2コアまたは3コア |
| 設置方法: | ツールなし | シールタイプ: | 密封された構造 |
| カラーコード: | はい | ラッチの設計: | 確実な接続 |
| プロトタイピング能力: | 迅速なプロトタイピング | 生産の証明: | IPC/ISO/UL認証済み |
| 製造施設: | 8,000平方メートル | ||
| ハイライト: | 3c automotive cable assemblies,industrial wiring harness for vehicles,high-performance electronic cable assemblies |
||
製品の説明

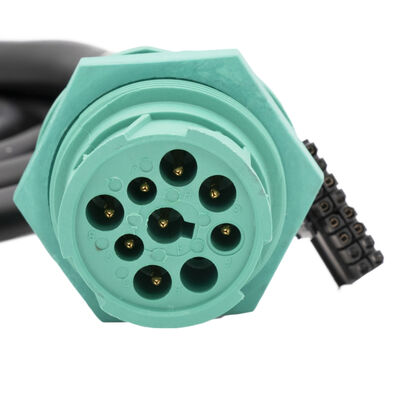

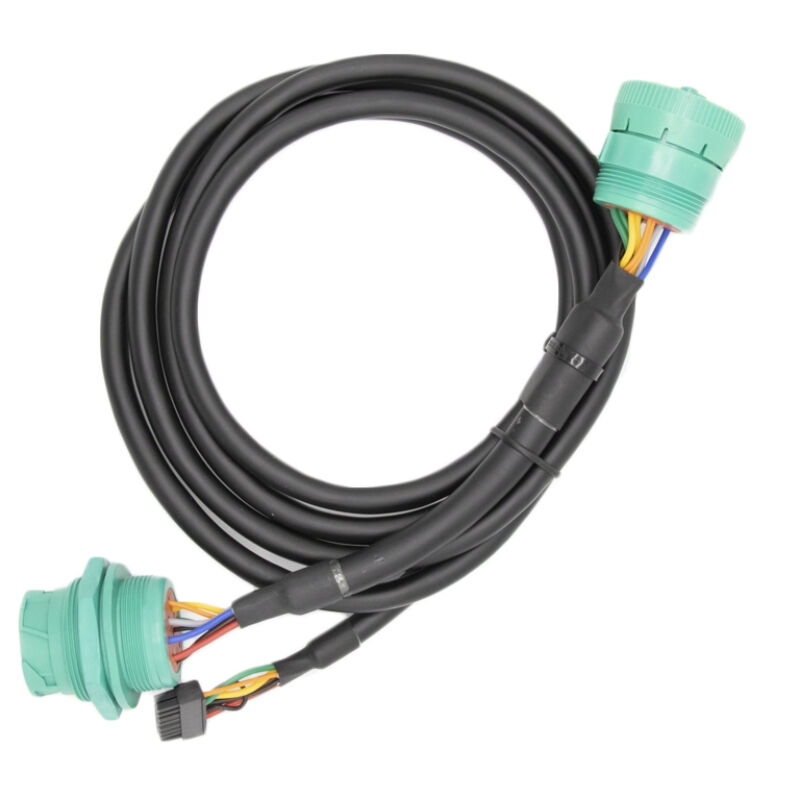

High-Quality 3c Industrial Cable Assemblies for Automotive Needs
The EDG-985 is a tool-free PRS click-in connector plug designed for truck and trailer lighting systems. It enables secure connections without the need for crimping tools, making it ideal for fast assembly in field repairs and OEM installations.
| Our Advantages | In-house design and PRS mold tooling capability |
| Rapid prototyping and MOQ flexibility | |
| IPC/ISO/UL certified production | |
| Over 20 years serving automotive lighting systems | |
| End-to-end cable + connector assembly solutions |
Key Features
- PRS standard click-in design
- No crimping required - tool-free installation
- Compatible with 2-core or 3-core lighting wires
- Sealed structure for moisture and dust resistance
- Operating voltage: 12V / 24V DC
- Current rating: Up to 10A
- Operating temperature: -30°C to +85°C
- Color coding and latch design for foolproof connection
Applications
- Truck tail light wiring connections
- Trailer marker and stop light cables
- Off-road vehicle lighting assemblies
- Emergency and utility vehicle retrofit kits
Main Products
Company Profile
EdgarWireHarness - Your Reliable Partner in Custom Wire Harness and Cable Assembly Solutions.
Founded in 1999, EdgarWireHarness has been dedicated to the design, development, and manufacturing of premium wire harnesses, cable assemblies, and overmolded connectors for over 25 years. In 2011, we moved into our modern manufacturing facility located in Shatian, Dongguan, covering a total area of 8,000 square meters.
Today, with a team of 260 skilled employees and 12 advanced production lines, we proudly serve a wide range of industries including automotive, industrial automation, telecommunication, consumer electronics, and smart IoT systems.
Certifications
Exhibitions
Our Customers
Packaging & Shipping
FAQ
Q1: Are you a manufacturer or a trading company?
We are a direct manufacturer with our own factory in Shatian, Dongguan, China. EdgarWireHarness has been specialized in wire harness and cable assembly manufacturing since 1999.
Q2: What products do you mainly offer?
We specialize in custom wire harnesses, cable assemblies, overmolded connectors, automotive diagnostic cables, industrial control cables, and PCBA-integrated cable solutions.
Q3: Can you design products according to our requirements?
Yes, we offer complete OEM and ODM services. Our R&D team can assist with wire selection, connector sourcing, overmold design, and full 2D/3D drawing support.
Q4: What certifications do your products comply with?
Our products are manufactured under ISO 9001 quality management standards. Depending on your market needs, materials can comply with UL, RoHS, REACH, and other specific certifications.
Q5: Can you provide samples?
Yes, we offer free samples for evaluation.
- Standard samples: 3-5 working days
- Customized samples: 7-10 working days, depending on complexity.
- Standard samples: 3-5 working days
- Customized samples: 7-10 working days, depending on complexity.
Q6: What is your typical production lead time?
- Samples: 3-10 days
- Mass production: 2-4 weeks after sample approval and deposit received.
We can also offer expedited production in urgent cases.
- Mass production: 2-4 weeks after sample approval and deposit received.
We can also offer expedited production in urgent cases.
Q7: What are your payment terms?
- For tooling and samples: 100% T/T in advance
- For mass production: 30% deposit, 70% balance before shipment or against B/L copy
Flexible terms can be discussed for long-term partners.
- For mass production: 30% deposit, 70% balance before shipment or against B/L copy
Flexible terms can be discussed for long-term partners.
Q8: What are your main markets?
Our products are widely exported to North America, Europe, Southeast Asia, and Australia. We work with industries including automotive, industrial equipment, smart IoT, medical, and renewable energy sectors.
Q9: How do you control product quality?
We implement strict incoming material inspection, in-process quality control (IPQC), and 100% final testing. Testing methods include continuity testing, pull force testing, air tightness testing, and X-ray solder joint inspection.
Q10: Can you customize packaging and labels?
Yes, we offer customized packaging solutions, including individual bagging, customized labels, barcodes, anti-static packaging, and export cartons with your logo or design requirements.
